Automatic mounting of position sensors

In electrical drives, Hall sensors are used to determine the exact position of the rotor and the electronic components are normally attached manually as wired THT components. A mechanical bracket is also mounted which aligns the sensors at an angle of precisely 90 degrees.

Hall Effekt Encoder — Two-channel Hall-effect encoder for recording the rotation of a motor shaft

Such manual assemblies are no longer necessary when HARTING’s component carriers are used because the sensors are automatically mounted onto the component carrier, making an additional component for arranging and aligning the sensors unnecessary. The component carrier with the position sensors is delivered by HARTING in a blister belt packaging (tape & reel) for the automatic SMD assembly process. This component carrier replaces the manual processing steps – thus increasing the reproducibility and reducing the processing costs.

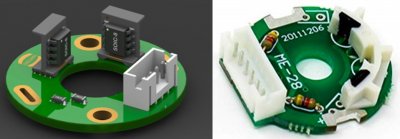

Bauteiltraeger Loesung und traditionelle Loesung — Component carrier solution & traditional solution
